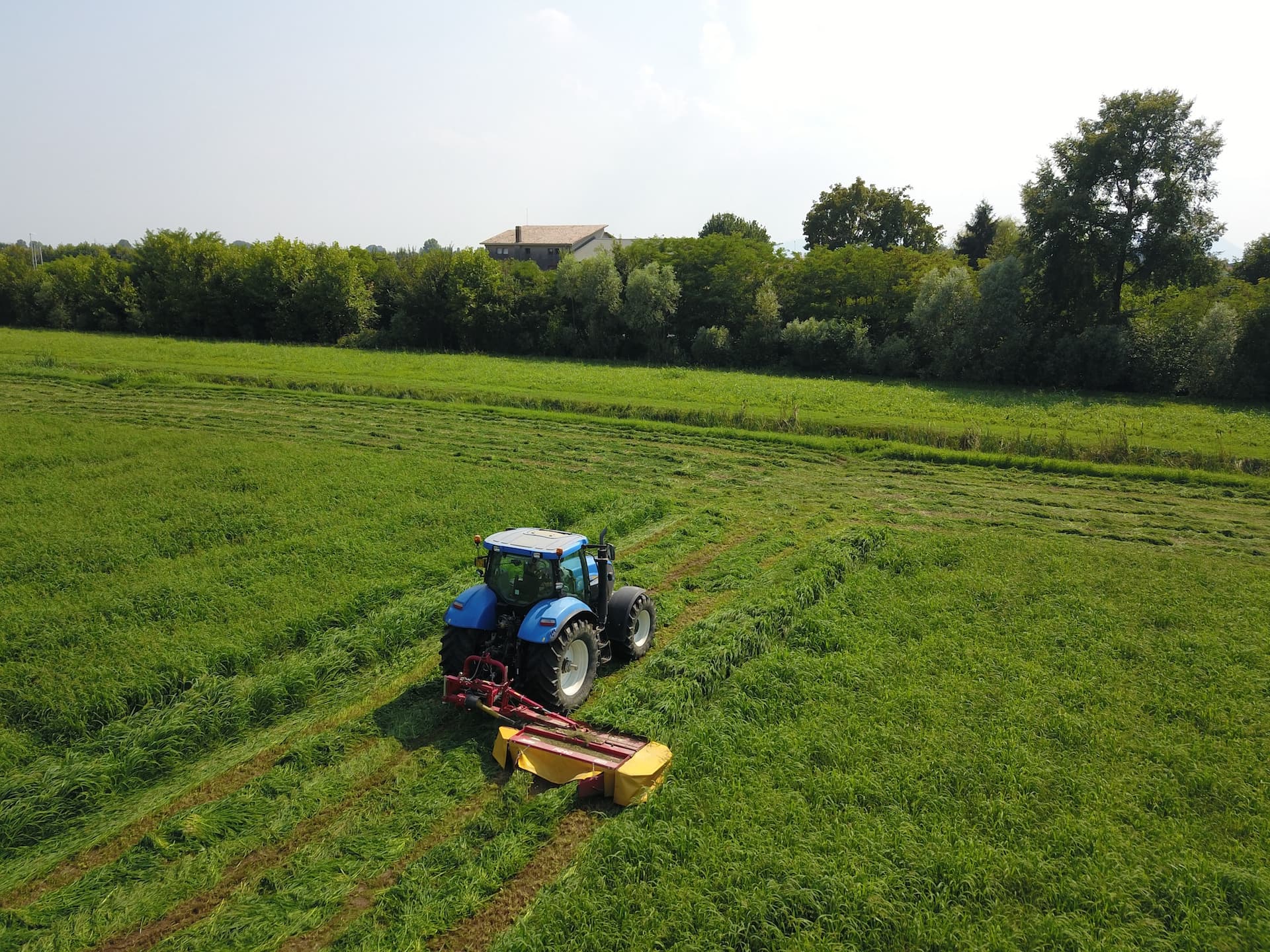

Bellon rear-mounted drum mowers
Time-honored agricultural tradition, powerful Bellon manufacturing
Robust, reliable, and easy to operate: rear-mounted drum mowers are the ultimate partners for anyone seeking tireless performance in all harvesting conditions. Their operational flexibility is driven by the free-rotating bottom skid which, spinning independently without internal gears, dramatically reduces ground friction through passive mechanics, while the heavy-duty upper drivetrain ensures an efficient, high-speed cut.
Our mowers at a glance
The F and FH series represent the Bellon tradition: tireless machines born in the field to meet the farmer’s daily challenges.
Cutting width to cover large areas in less time
Drums available for superior forage management
Optimized blade overlap for a uniform cut
Minimum power required to operate with maximum yield
Rear-mounted drum mowers: uncompromising durability
The F and FH Series bring Bellon’s historical drum manufacturing expertise straight to the field. Engineered with a heavy-duty, reliable PTO shaft drive and a rugged structure built for long-term durability, these mowers deliver unbeatable performance even in the densest, most challenging forage.
The choice between mechanical spring suspension (F Series) or hydropneumatic suspension with a nitrogen accumulator (FH Series) allows you to perfectly adjust ground pressure to your specific terrain. Each model is designed to form fluffy, well-aerated swaths that accelerate natural drying for uniform, high-quality forage.
Mechanical reliability
Robust PTO shaft drive that ensures flawless continuity of work even under heavy strain.
Hydraulic lifting system
Fast and safe headland maneuvers directly from the tractor cabin.
Pressure control
Bellon mowers are available with a nitrogen accumulator to cushion ground pressure, protecting the turf.
F series
2-drum with mechanical lift
| F135 | F170 | F190 | |
|---|---|---|---|
| Cutting width | 1,35m | 1,70m | 1,90m |
| Drums | 2 | 2 | 2 |
| Blades | 8 | 8 | 8 |
| Cardan shaft | 2 | 2 | 2 |
| Power absorbed | 30HP | 40HP | 45HP |
| PTO revolutions | 540rpm | 540rpm | 540rpm |
| Mower's weight | 310kg | 370kg | 395kg |
FH series
2-drum with hydraulic lift
| FH170 - FH170GM | FH190 - FH190GM | |
|---|---|---|
| Cutting width | 1,70m | 1,90m |
| Drums | 2 | 2 |
| Blades | 8 | 8 |
| Cardan shaft | 2 | 2 |
| Power absorbed | 40HP | 45HP |
| Mower's weight | 370kg | 570kg |
| Conditioner's weight | 90kg | 150kg |
| PTO revolutions | 540 rpm | 540 rpm |
| Conditioner | rollers chevron | rollers chevron |
F series
4-drum with mechanical lift
| F220 - F220GM | F240 - F240GM | |
|---|---|---|
| Cutting width | 2,20m | 2,40m |
| Drums | 4 | 4 |
| Blades | 16 | 16 |
| Cardan shaft | 2 | 2 |
| Power absorbed | 40HP | 45 HP / 50HP |
| Mower's weight | 710kg | 760kg / 970kg |
| Conditioner's weight | 180kg | 210kg |
| PTO revolutions | 540 rpm | 540-1000 rpm |
| Conditioner | rollers chevron | rollers chevron |
FH series
4-drum with hydraulic lift
| FH240 - FH240GM | FH270 - FH270GM | |
|---|---|---|
| Cutting width | 2,40m | 2,70m |
| Drums | 4 | 4 |
| Blades | 16 | 16 |
| Cardan shaft | 2 | 2 |
| Power absorbed | 70HP | 80HP |
| Mower's weight | 700kg | 800kg / 1100kg |
| PTO revolutions | 540-1000rpm | 1000rpm |
| Conditioner | rollers chevron | rollers chevron |
