Bellon pull-type disc mowers
The professional choice for wide area performance
Agility, wide cutting widths and professional conditioning for fast, high-quality haymaking.
Our mowers at a glance
The TRD series is the choice of professionals who need a high-performance, versatile and easy-to-handle machine.
Maximum working width to cover large areas
High-efficiency discs for an optimized crop flow and a perfectly uniform swath
Maximum number of blades per mower
Flexible transmission to adapt to any specific requirement
TRD series: innovation and productivity in the open field

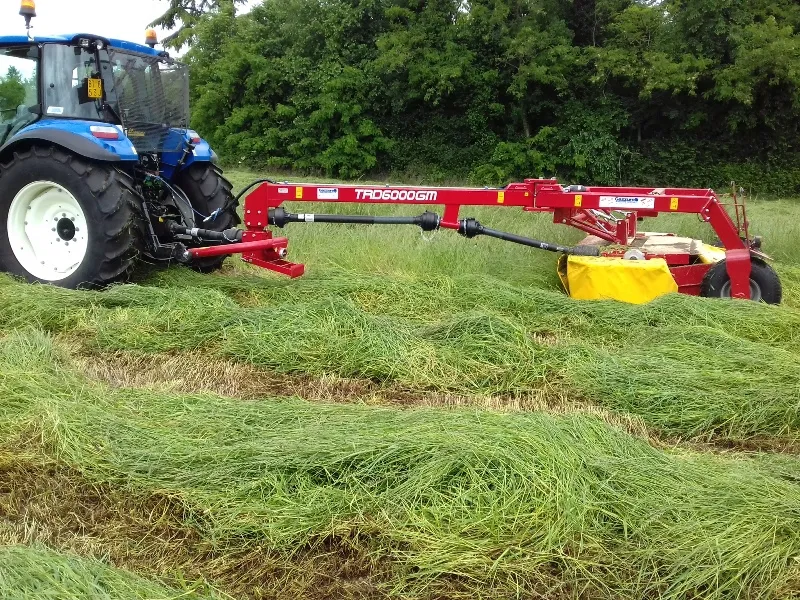

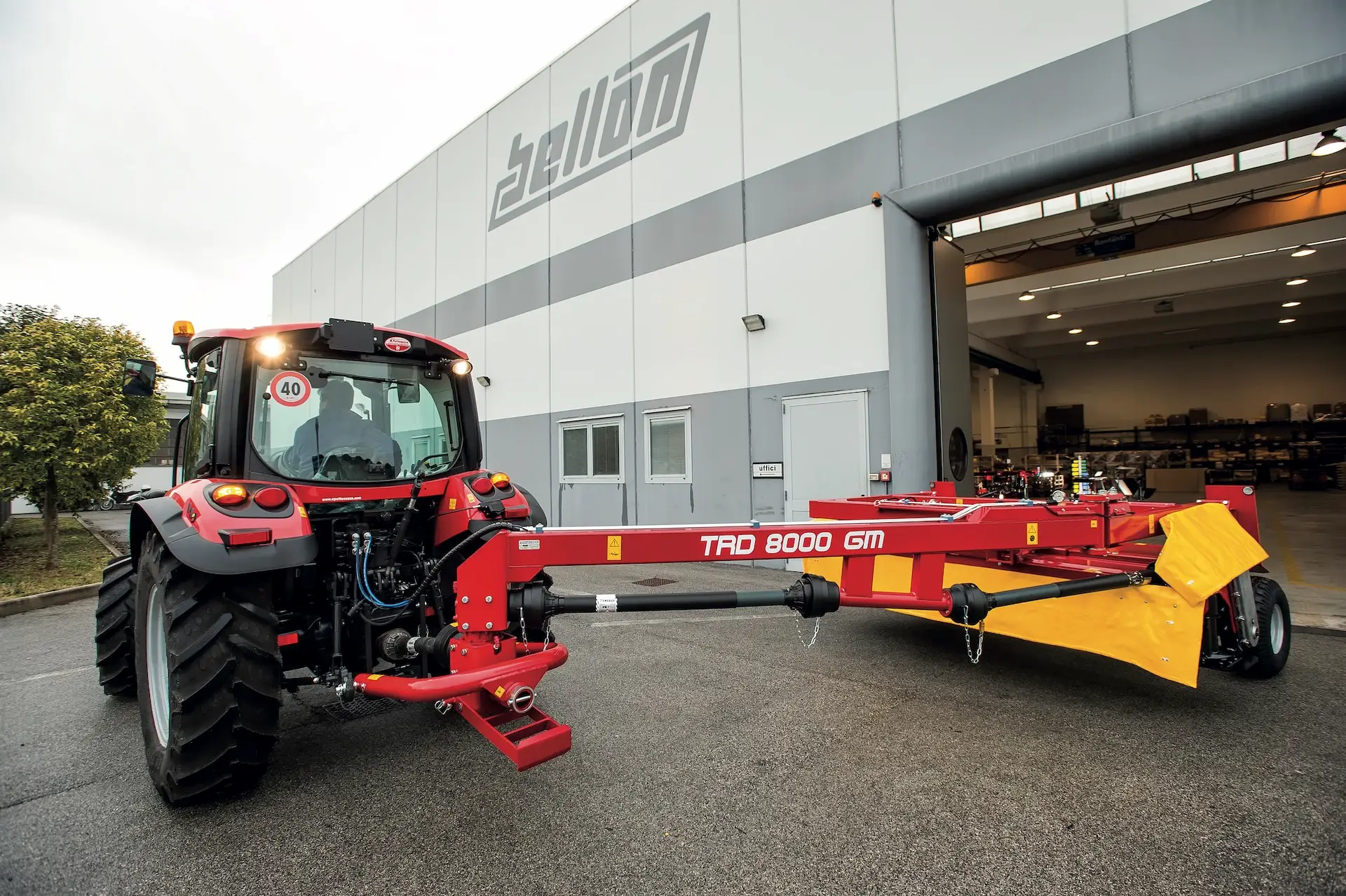

The TRD range of pull-type disc mowers combines heavy-duty cutter bar precision with the outstanding maneuverability of a towed system. Engineered for professional farmers and contractors requiring maximum operational efficiency, this series delivers high working speeds and a perfectly clean cut. The robust chassis and responsive hydraulic suspension ensure precise ground contour following, preventing crop contamination. Available with two specialized conditioning systems (roller or tine), the TRD series provides total control over forage quality and drying times. Additionally, the TRD-CEN series features a central drawbar that allows operators to mow on either side of the tractor, optimizing field efficiency while retaining all the heavy-duty features of the standard TRD version.
Dynamic ground flotation
The pull-type disc mower delivers responsive ground contouring through an advanced hydraulic suspension, ensuring a clean cut while protecting the turf
Excellent stability
The rugged towed chassis guarantees exceptional stability and perfect tracking on slopes, adapting seamlessly to undulating and uneven terrains.
Intensive professional use
Designed to withstand long working days whilst maintaining consistent cutting quality.
TRD series
Chevron rubber roller conditioner
| TRD6000 - TRD6000GM | TRD6003 - TRD6003GM | TRD7000 - TRD7000GM | RD8000 - TRD8000GM | TRD8003 - TRD8003GM | |
|---|---|---|---|---|---|
| Cutting width | 2,40m | 2,40m | 2,80m | 3,20m | 3,20m |
| Cutting system | disc | disc | disc | disc | disc |
| Discs | 6 | 6 | 7 | 8 | 8 |
| Blades | 12/18 | 12/18 | 14 | 16/24 | 16/24 |
| PTO revolutions | 540-1000rpm | 540-1000rpm | 540-1000rpm | 540-1000rpm | 540-1000rpm |
| Tyres | 10/80-12 | 10/80-12 | 10/80-12 | 10/80-12 | 10/80-12 |
| Mower’s weight | 1200kg | 1200kg | 1250kg | 1300kg | 1300kg |
| Mower’s weight | 120kg | 120kg | 140kg | 160kg | 160kg |
TRD series
Flail conditioner
| TRD6000FL - TRD6003FL | TRD7000FL | TRD8000FL - TRD8003FL | |
|---|---|---|---|
| Cutting width | 2,40m | 2,80m | 3,20m |
| Cutting system | disc | disc | disc |
| Discs | 6 | 7 | 8 |
| Blades | 12/18 | 14 | 16/24 |
| PTO revolutions | 540-1000rpm | 540-1000rpm | 540-1000rpm |
| Tyres | 10/80-12 | 10/80-12 | 10/80-12 |
| Mower’s weight | 1280kg | 1340kg | 1400kg |
| Flail conditioner’s weight | 80kg | 90kg | 100kg |
TRD-CEN series
Central drawbar
| TRD 8000 CEN | TRD 8000 CEN GM | |
|---|---|---|
| Cutting width | 3,2m | 3,2m |
| Cutting system | disc | disc |
| Discs | 8 | 8 |
| Blades | 16/24 | 16/24 |
| PTO revolutions | 540-1000rpm | 540-1000rpm |
| Tyres | 10/80-12 | 10/80-12 |
| Mower’s weight | 1360kg | 1520kg |
| Conditioner | - | Chevron rubber roller |
